1x2(2x2) 532/635nm (450/532nm) Fused PM Fiber WDM
Product Features Product Applications
Low Excess Loss Virtual Reality(VR) and AR
High Extinction Ratio Medical Instrument
High Power Handling Monitoring in Coherent Systems
Available for Slow or Fast Axis Operation Fiber Lasers
Telcordia GR-1221 Compliant Test

Specifications 532/635nm 450/532nm
Parameter Unit Premium A Grade Premium A Grade
Pump Channel nm 532±5 450±5
Insertion Loss Max dB 1.4 1.5 1.4 1.5
Polarization Extinction ratio Min dB 17 15 17 15
Isolation@ 635±5nm Min dB 12 11 12 11
Signal Channel nm 635±5 532±5
Insertion Loss Max dB 1.4 1.5 1.4 1.5
Polarization Extinction ratio Min dB 17 15 17 15
Isolation@ 532±5nm Min dB 12 11 12 11
Operating Power Max W 2
Operating Temperature °C -40 to +85
Storage Temperature °C -50 to +85
Fiber Type mm S9=Ø3x76 / S10=Ø3x92 / M3=7.5x18x85

All specifications are before connectors. PER is 2dB lower and IL is 0.2dB higher after connectors.

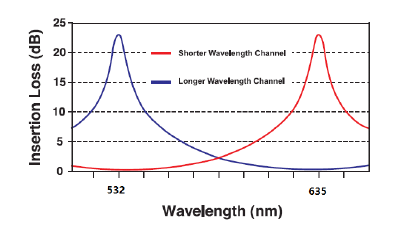

Typical Spectrum
Ordering Information
P M S W 0 0
    Wavelength
F=532/635nm
A=450/532nm
Structure
1=1x2
2=2x2
    Grade
P=Premium
A=A grade
Package
8=S9 with
250μm bare
fiber pigtail
9=S10 with
0.9mm loose
tube
F=M3 with
3mm cable
Fiber Type
E=Panda fiber
Fiber Length
0=0.5m
1=0.75m
2=1.0m
3=1.5m
4=2.0m
S=Specify
Connector
0=None
1=FC/PC
2=FC/SPC
3=FC/APC
7=FC/UPC

Note: 1. Central Wavelength can be customized for different applications.
2. All specifications are subject to change without notice.
3. All data are measured at central wavelength at room temperature.
