1x2 980/1550nm Fused PM Fiber Standard WDM
Product Features Product Applications
Low Excess Loss PM Fiber EDFAs
High Extinction Ratio Monitoring in Coherent Systems
High Power Handling Fiber Lasers
Available for Slow or Fast Axis Operation
Telcordia GR-1221 Compliant Test

Specifications 980/1550nm
Parameter Unit Premium A Grade
Pump Channel nm 980±10
Insertion Loss Max dB 0.5 0.6
Polarization Extinction ratio Min dB 20 17
Isolation@ 1528 to 1565nm Min dB 18 17
Signal Channel nm 1528 to 1565
Insertion Loss Max dB 0.7 0.9
Polarization Extinction ratio Min dB 20 17
Isolation@ 980±10nm Min dB 18 17
Operating Power Max W 2
Operating Temperature °C -40 to +85
Storage Temperature °C -50 to +85
Fiber Type mm S6=Ø3x54 / S8=Ø3x70 / M1=9x16x90

All specifications are before connectors. PER is 2dB lower and IL is 0.2dB higher after connectors.

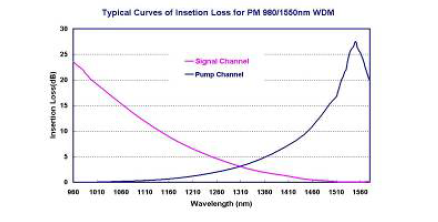

Typical Spectrum
Ordering Information
P M S W 0 0
    Wavelength
1=980/1550nm
S=Specify
Structure
1=1x2
    Grade
P=Premium
A=A grade
Package
5=S6 with
250μm bare
fiber pigtail
7=S8 with
0.9mm loose
tube
D=M1 with
3mm cable
Fiber Type
E=Panda fiber
Fiber Length
0=0.5m
1=0.75m
2=1.0m
3=1.5m
4=2.0m
S=Specify
Connector
0=None
1=FC/PC
2=FC/SPC
3=FC/APC
7=FC/UPC

Note: 1. Central wavelength can be customized for different applications.
2. All specifications are subject to change without notice.
3. All data are measured at central wavelength at room temperature.
