PM Fiber Patch Cords
		Product Features	Product Applications
		Low Insertion Loss	Power Jumps
		High Extinction Ratio	Testing Systems
		High Power Handling	PM Fiber Sense Systems
		Excellent Return Loss	Optical PM Modules
		Telecordia GR-326 Compliant

Specifications
Parameter		Unit	Premium	A grade	Premium	A grade
Central Wavelength		nm	780, 830, 980, 1064		1310, 1480, 1550, 2000
Insertion Loss	Max	dB	0.60	0.80	0.25	0.30
Polarization Extinction Ratio	Min	dB	25	22	25	22
Operating Power	Max	dB	5
Operating Temperature		°C	-40 to +85
Storage Temperature		°C	-50 to +85



Typical Spectrum

Ordering Information

P

F

P

C

Wavelength 4=1550nm 5=1480nm 7=1310nm 8=1064nm 9=980nm L=780nm K=830nm P=2000nm S=Specify

Grade P=Premium A=A grade

Cable Type 0=Bare fiber L=3mm cable M=0.9mm loose tube

Fiber Type 1=6/80um Panda Fiber E=9/125um Panda fiber L=Large mode area panda fiber

Cable Length 0=0.5m 1=0.75m 2=1.0m 3=1.5m 4=2.0m 5=2.5m 6=3.0m S=Specify

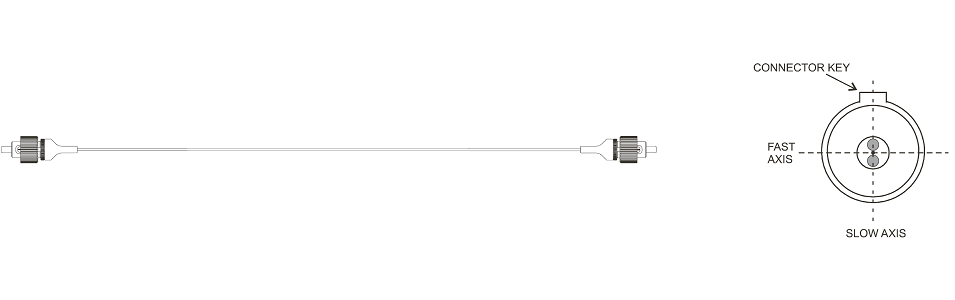

Align at Connector 1 0=None 1=Slow Axis 2=Fast Axis

Align at Connector 2 0=None 1=Slow Axis 2=Fast Axis

Connector 1 0=None 1=FC/PC 2=FC/SPC 3=FC/APC 5=SC/APC 7=FC/UPC A=LC/PC B=SC/PC D=LC/APC S=Specify

Connector 2 0=None 1=FC/PC 2=FC/SPC 3=FC/APC 5=SC/APC 7=FC/UPC A=LC/PC B=SC/PC D=LC/APC S=Specify

Note: 1. Central Wavelength can be customized for different applications.
2. All specifications are subject to change without notice.
3. All data are measured at central wavelength at room temperature.
