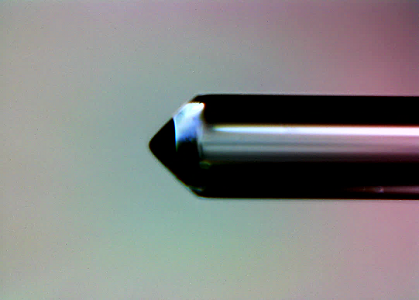

Biconical Optical Lensed Fibers
		Product Features	Product Applications
		Excellent coupling efficiency	Couplings of various type of laser devices
		Double radius of curvature (x direction, Y direction)

Specifications
Parameter	Unit	Values
Fiber Type	/	Conventional single-mode / multimode / polarization maintaining fiber, special optical fibers provided by customers
Angle1	°	50°~140°
Angle2	°	50°~140°
Radius of Curvature	μm	3~20um
Strip Length	mm	>5±1mm

Package Size Diagram

Ordering Information

B

L

O

F

Fiber Type 1=G652 or equivalent 4=105/125MMF 5=980-20 or equivalent 6=HI060 or equivalent S=Specify

Angel1 50=50° 51=51° ...... 98=98° 99=99° S0=Specify

Angel2 50=50° 51=51° ...... 98=98° 99=99° S0=Specify

Strip Length 1=5mm 2=10mm 3=15mm 4=20mm S=Specify

Pigtail Type S=250um bare fiber M=900um loose tube

Pigtail Length 0=0.5m 1=0.75m 2=1.0m 3=1.5m 4=2.0m S=specify

Connector 0=None 1=FC/PC 2=FC/SPC 3=FC/APC 7=FC/UPC
