980/1310nm Single Mode Fiber WDM
Product Features Product Applications
Low PDL Optical Communication System
Low Insertion Loss Fiber Optic Amplifier
High Isolation
High Return Loss
Stable and Reliable

Specifications 980/1310nm
Parameter Unit Premium A grade
Shorter Wavelength Channel nm 980±10
Insertion Loss Max dB 0.3 0.4
PDL Max dB 0.1 0.15
Isolation @ 1310±15 nm Min dB 18 18
Longer Wavelength Channel nm 1310±15
Insertion Loss Max dB 0.3 0.4
PDL Max dB 0.1 0.15
Isolation @ 980±10 nm Min dB 18 16
Operating power Max W 5
Operating Temperature °C -40 to +85
Storage Temperature °C -50 to +85
Fiber Type mm S6=Ø3x54: for bare fiber
S8=Ø3x70: for 0.9mm loose tube
M1=9x16x90: for 0.9mm loose tube or 2mm cable or 3mm cable

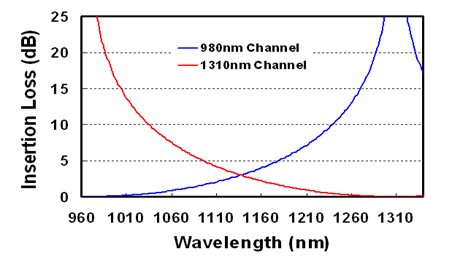

Typical Spectrum
Ordering Information
W D M 0 0
    Wavelength
4=980/1310nm
Structure
1=1x2
2=2x2
    Grade
P=Premium
A=A grade
Package
5=S6
7=S8
D=M1
Fiber Type
5=980-20
7=SM1060 FLEX
8=980-16
Pigtail
S=250μm
bare fiber
M=0.9mm
loose tube
L=3mm cable
R=2mm cable
Fiber Length
0=0.5m
1=0.75m
2=1.0m
3=1.5m
4=2.0m
S=Specify
Connector
0=None
1=FC/PC
2=FC/SPC
3=FC/APC
4=SC/SPC
5=SC/APC
6=ST
7=FC/UPC
8=SC/UPC
9=MU
A=LC
B=SC/PC

Note:1. Central wavelength can be customized for different applications.
2. All specifications are before connectors and are subject to change without notice.
