980/1064nm Single Mode Fiber WDM
		Product Features	Product Applications
		Low PDL	Optical Communication System
		Low Insertion Loss	Fiber Optic Amplifier
		High Return Loss	EDFA Module
		Stable and Reliable
		High Isolation

Specifications			980/1064nm
Parameter		Unit	Premium	A grade
Shorter Wavelength Channel		nm	980±5
Insertion Loss	Max	dB	0.3	0.4
PDL	Max	dB	0.1	0.15
Isolation @ 1064±5 nm	Min	dB	15	13
Longer Wavelength Channel		nm	1064±5
Insertion Loss	Max	dB	0.3	0.4
PDL	Max	dB	0.1	0.15
Isolation @ 980±5 nm	Min	dB	15	13
Operating Power	Max	W	5
Operating Temperature		°C	-40 to +85
Storage Temperature		°C	-50 to +85
Fiber Type		mm	S9=Ø3x76: for bare fiber
			S10=Ø3x92: for 0.9mm loose tube
			M3=7.5x18x85: for 0.9mm loose tube or 2mm cable or 3mm cable

All specifications are before connectors. PER is 2dB lower and IL is 0.2dB higher after connectors.

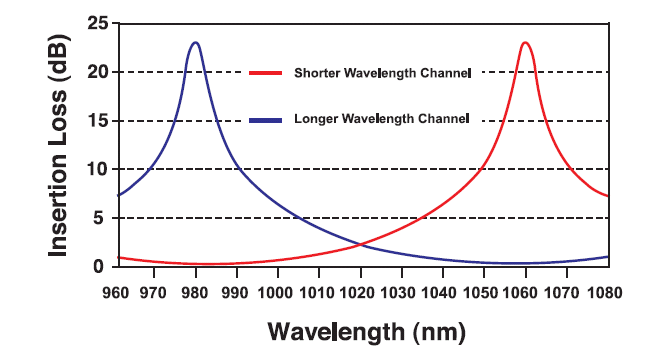

Typical Spectrum

Ordering Information

W

D

M

0

0

Wavelength C=980/1064nm

Structure 1=1x2 2=2x2

Grade P=Premium A=A grade

Package 8=S9 9=S10 F=M3

Fiber Type 5=980-20 6=SM1060 7=SM1060 FLEX 8=980-16

Pigtail S=250μm bare fiber M=0.9mm loose tube L=3mm cable R=2mm cable

Fiber Length 0=0.5m 1=0.75m 2=1.0m 3=1.5m 4=2.0m S=Specify

Connector 0=None 1=FC/PC 2=FC/SPC 3=FC/APC 4=SC/SPC 5=SC/APC 6=ST 7=FC/UPC 8=SC/UPC 9=MU A=LC B=SC/PC

Note:1. Central wavelength can be customized for different applications.
2. All specifications are before connectors and are subject to change without notice.
