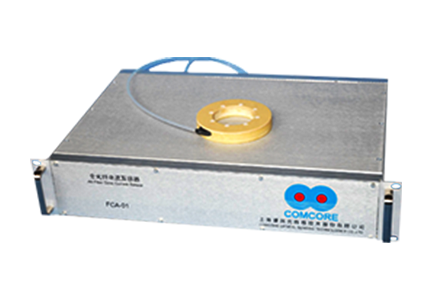

| Pulse Current Measuring Instrument | |||
![]()  |
						  Product Features | Product Applications | |
| All-fiber structure | Lightning monitoring | ||
| Easy to install and transport | Transient current measurement | ||
| Quick response | Electromagnetic launch | ||
| Wide measuring frequency band | |||
| Large dynamic range | |||
| Main Technological Parameters | |
| Current Measuring Range | 50A~3000kA |
| Current Measuring Frequency Range | 0~500kHz |
| Output Signal Protocol | Customization |
| Sampling Frequency | 0~10MHz |
| Operating Temperature | -20°C~+55°C |
| Power Supply | DC110V、DC220V、AC220V |
| Diameter of Fiber Optic Current Sensing Coils | 80mm~120mm, or customization |
| Size of Signal Acquisition and Processing Unit | Standard 2U rack, customized size |
