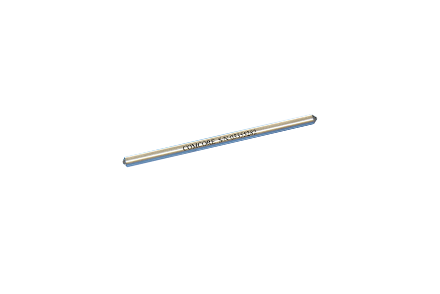

1x2(2x2) 400um Fused PM Fiber Standard Splitter (Mixer)
Product Features Product Applications
  • Low Excess Loss
  • Optical Amplifier
  • High Extinction Ratio
  • Power Monitoring
  • High Power Handling
  • Coherent Communication
  • Available for Slow or Fast Axis Operation
  • Fiber Gyroscope
Telcordia GR-1221 Compliant Test
Specifications
Parameter Unit Premium A grade
Port Configuration   1x2 or 2x2
Central Wavelength nm 1480, 1550, 2000
Bandwidth nm ±20
Excess Loss Typ dB 0.2 0.3
Excess Loss Max dB 0.4 0.6
Polarization Extinction Ratio Min dB 20 17
Return Loss* Min dB 55 50
Operating power Max W 2
Operating Temperature °C -40 to +85
Storage Temperature °C -50 to +85
Package Type mm S6=Ø3x54

Above PER is for more than 10%(CR) port, it's 2dB lower for no more than 10%(CR) port, and 4dB lower for no more than 5%(CR) port.

*Test at central wavelength only. There would be an unused termination port around 20cm for 1x2 version.

Splitting Ratio & Its Tolerance
Splitting Ratio Maximum Splitting Ratio Tolerance (%)
Premium A grade
99/1 ±0.5 ±0.6
98/2 ±0.8 ±1.0
95/5 ±1.5 ±1.7
90/10 ±2.2 ±2.4
80/20 ±2.5 ±3.0
70/30 ±3.0 ±3.7
60/40 ±4.0 ±4.8
50/50 ±5.0 ±6.0
Ordering Information
P M S S
        Wavelength
4=1550nm
5=1480nm
P=2000nm
Structure
1=1x2
2=2x2
Splitting Ratio
99=99:1
98=98:2
95=95:5
90=90:10
80=80:20
70=70:30
60=60:40
50=50:50
Grade
P=Premium
A=A grade
Package
5=S6 with 400um
bare fiber pigtail
Fiber Type
G=400um Panda fiber
Fiber Length
0=0.5m
1=0.75m
2=1.0m
3=1.5m
4=2.0m
S=Specify
Connector
0=None

Note: 1. Central wavelength can be customized for different applications.
2. All specifications are subject to change without notice.
3. All data are measured at central wavelength at room temperature.
