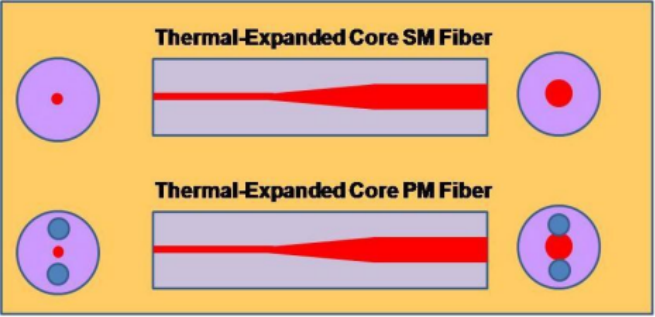

Thermal Expanded Single Core Fiber
		Product Features	Product Applications
		Low Excess Loss	Low Loss Splicing Point for Different Fibers
		Large Expanded Field	Stable Fiber Alignment
		More Tolerance for Alignment	High Power Connector Pigtails
			High Coupling Efficient to Laser

Specifications
Parameter		Unit
Excess Loss	Max	dB	0.1
Excess Loss	Typ	dB	0.04
Cladding Diameter Tolerance*	Man	um	5
Available Polishing Length	Min	mm	0.5



Typical Spectrum

Ordering Information

T

E

C

Mode Filed 1=100% 2=200%

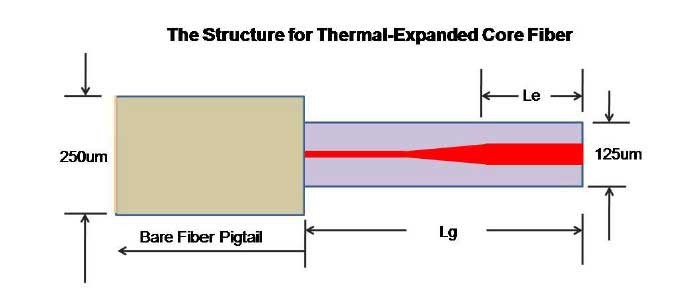

Glass Length, Lg 04=4mm 05=5mm 06=6mm 07=7mm ….. 20=20mm

Expand Length, Le 02=2.0mm 03=3.0mm 04=4.0mm ….. 10=10.0mm

Fiber Type 1=G652 or Equivalent 2=SM1060 3=SM1060 FLEX 4=980-20 5=980-16 6=SM780 7=Panda1550 8=Panda980 9=Panda780

Pigtail S=250μm bare fiber M=0.9mm Loose tube L=3mm Cable

Fiber Length 0=0.5m 1=0.75m 2=1.0m 3=1.5m S=Specify

Connector (TEC fiber) 0=None 1=FC/PC 2=FC/SPC 3=FC/APC 4=SC/SPC 5=SC/APC 6=ST 7=FC/UPC 8=SC/UPC 9=MU A=LC/PC B=SC/PC C=LC/UPC D=LC/APC E=FC Ferrule F=LC Ferrule G=FA

Connector (Normal fiber) 0=None 1=FC/PC 2=FC/SPC 3=FC/APC 4=SC/SPC 5=SC/APC 6=ST 7=FC/UPC 8=SC/UPC 9=MU A=LC/PC B=SC/PC C=LC/UPC D=LC/APC E=FC Ferrule F=LC Ferrule G=FA

Note: All specifications are before connectors and are subject to change without notice.
