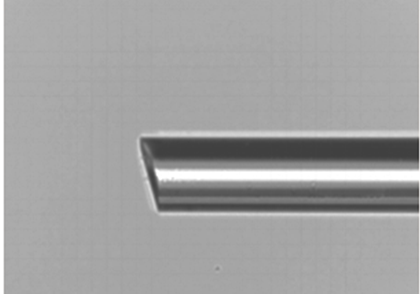

8° Oblique End-Face Lensed Fibers | |||
Product Features | Product Applications | ||
6°~15° oblique end-face angle, which can prevent the reflected light of the surface from returning to the laser equipment. | Coupling of high speed receiver and laser to fiber side surface |
Specifications | |||||
Parameter | Unit | Values | |||
Fiber Type | / | Conventional single-mode / multimode / polarization maintaining fiber, special optical fibers provided by customers | |||
Angle | ° | 8°±1°or the angle specified by customers ± 1 °within the range of 6°~15° | |||
Strip Length | mm | >5±1mm |
Package Size Diagram |
Ordering Information | ||||||||||||
O | E | L | F | 0 | 0 | |||||||
Fiber Type 1=G652 or equivalent 5=980-20 or equivalent 6=HI060 or equivalent S=Specify |
Angle 06=6° 08=8° ...... 15=15° SS=Specify |
Strip Length 1=5mm 2=10mm 3=15mm 4=20mm S=Specify |
Pigtail Type S=250um Bare Fiber M=900um loose tube |
Pigtail Length 0=0.5m 1=0.75m 2=1.0m 3=1.5m 4=2.0m S=Specify |
Connector 0=None 1=FC/PC 2=FC/SPC 3=FC/APC 7=FC/UPC |
