1310/1490nm Single Mode Fiber WDM
Product Features Product Applications
Low PDL Optical Communication System
Low Insertion Loss Fiber Optic Amplifier
High Isolation CATV System
High Return Loss Passive Optical Network
Stable and Reliable

Specifications 1310/1490nm
Parameter Unit Premium A grade
Shorter Wavelength Channel nm 1310±10
Insertion Loss Max dB 0.3 0.4
PDL Max dB 0.1 0.15
Isolation @ 1490±10 nm Min dB 17 16
Longer Wavelength Channel nm 1490±10
Insertion Loss Max dB 0.3 0.4
PDL Max dB 0.1 0.15
Isolation @ 1310±10 nm Min dB 17 16
Operating Power Max W 5
Operating Temperature °C -40 to +85
Storage Temperature °C -50 to +85
Fiber Type mm S9=Ø3x76: for 0.9mm loose tube
S13=Ø3x66: for bare fiber
M1=9x16x90: for 0.9mm loose tube or 2mm cable or 3mm cable

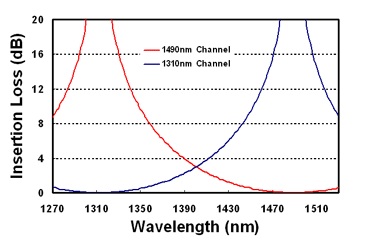

Typical Spectrum
Ordering Information
W D M 0 0
    Wavelength
D=1310/1490nm
Structure
1=1x2
2=2x2
    Grade
P=Premium
A=A grade
Package
C=S13
8=S9
D=M1
Fiber Type
1=G652 or Equivalent
Pigtail
S=250μm
bare fiber
M=0.9mm
loose tube
L=3mm cable
R=2mm cable
Fiber Length
0=0.5m
1=0.75m
2=1.0m
3=1.5m
4=2.0m
S=Specify
Connector
0=None
1=FC/PC
2=FC/SPC
3=FC/APC
4=SC/SPC
5=SC/APC
6=ST
7=FC/UPC
8=SC/UPC
9=MU
A=LC
B=SC/PC

Note:1. Central Wavelength can be customized for different applications.
2. All specifications are before connectors and are subject to change without notice.
